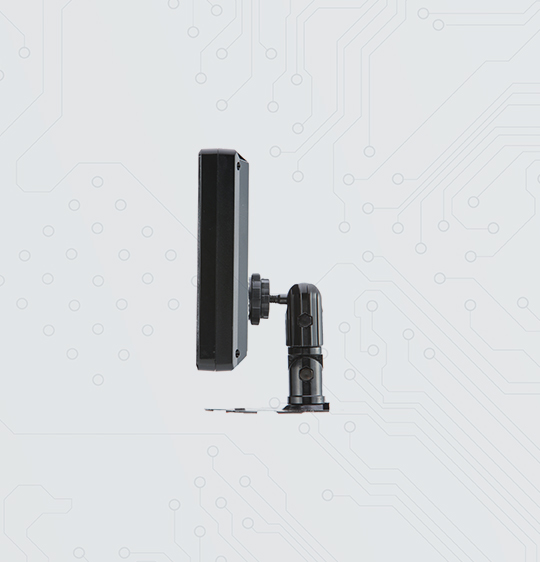

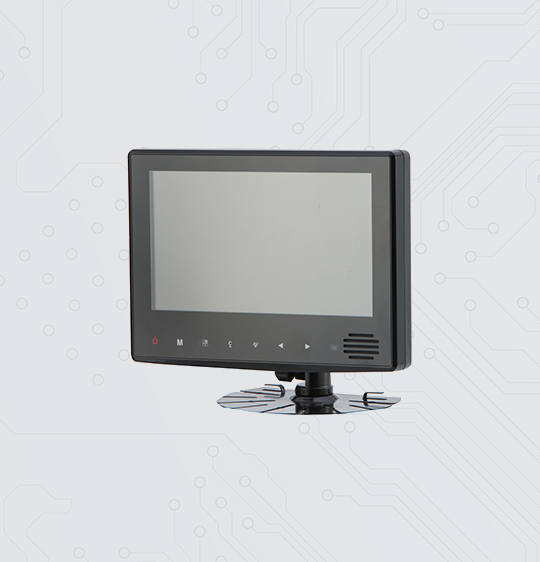

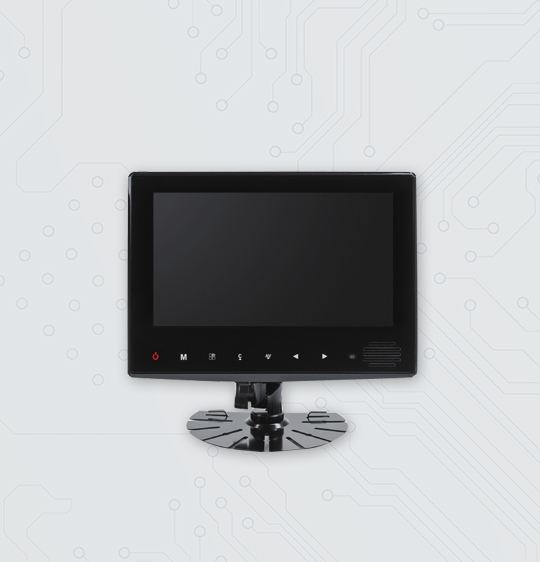

STM-7000Q

STM-7000Q

Display

• LCD : 7 inch TFT LCD (800 X 480)

Camera / AV

• Camera video & audio input : 3 inputs
• External video input/power output : 1 ch
• Audio/video output : 1 ch

Function

• Key touch monitor
• Adjust picture : Brightness/Contrast/Color/Tint
• Split screen/Tri screen/Quad screen
• Auto adjustable on screen distance marker
• Auto dimmer feature for night viewing
• Pre-set how much the monitor would dim at night
• Customer can choose camera names from menu
• Scan mode with programmable timer for each camera
• Selectable 8 languages :
English/Spanish/French/German/ Italian/Dutch/Finnish/Russian

The Others

• Power input : DC +12V ~ 48V
• Operating temperature : -30℃ ~ +85℃ (-22℉ ~ +185℉)
• Size : 188(W) X 137(H) X 30(D) mm
• Weight : 490g

September 5, 2015
