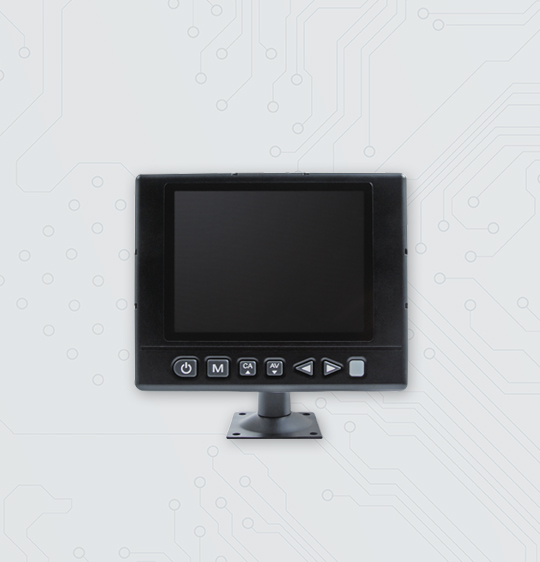

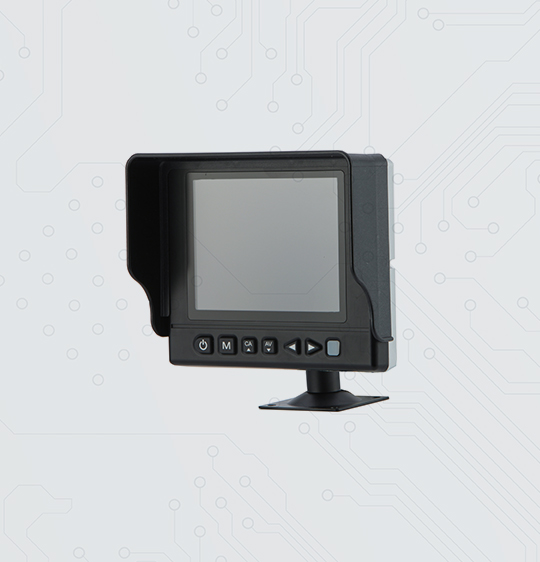

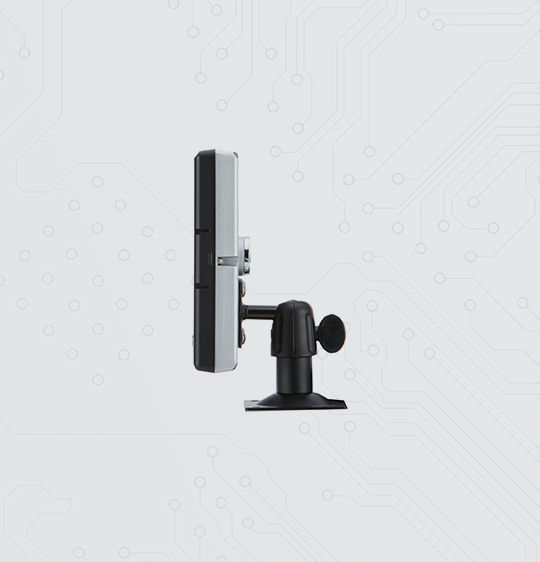

STM-5600HD

STM-5600HD

Display

• LCD : 5.6 inch TFT LCD (640 X 480)

Camera / AV

• Camera video & audio input : 3 inputs
• External video input/power output : 1 ch
• Audio/video output : 1 ch

Function

• Adjust picture : Brightness/Contrast/Color/Tint
• Auto adjustable on screen distance marker
• Auto dimmer feature for night viewing
• Pre-set how much the monitor would dim at night
• Customer can choose camera names from menu
• Scan mode with programmable timer for each camera
• Heavy duty Aluminum housing
• IP69K High pressure waterproof/dustproof
• 20G Vibration rating / 150G Shock rating
• Heat reflecting rear housing

The Others

• Power input : DC +12V ~ 32V
• Operating temperature : -30℃ ~ +85℃ (-22℉ ~ +185℉)
• Size : 165(W) X 116(H) X 28(D) mm
• Weight : 600g

April 3, 2016
